TOYOTA GR YARIS FRONT BUMPER + CARBON FIBER LIP SET

Bundle

TOYOTA GR YARIS FRONT BUMPER + CARBON FIBER LIP SET

THE COMPLETE FRONT END FOR THE GR YARIS.

From the side, the GR Yaris is all muscle: wide, flared fenders and sharp body lines that make it look ready to attack a corner. The factory front bumper doesn’t follow through. It’s tall, flat and boxy, so the front of the car looks narrower and calmer than the rest of it. This bundle pairs our GR Yaris front bumper with its matching front lip to give the nose the presence the rest of the car already has.

DESIGN

The bumper picks up the lines that run along the side of the car and carries them all the way across the front, so the nose finally matches the side of the car. The result looks wider and more aggressive while staying true to Toyota’s original body lines. The entire front is also extended 10mm forward. The lip follows the bumper’s lower edge from one side to the other and brings the front of the car visually closer to the ground, so the two read as one design with a lower, more planted stance.

HOW IT’S MADE

We start by 3D scanning the complete car, including everything behind the bumper: the crash beam, sensors and air intakes. Designing around that scan makes sure the new bumper clears every one of those parts. The shape is then sculpted by hand in clay at full size, scanned again, and finished with Class A surfacing, the same process carmakers use to create the smooth, continuous surfaces of factory body panels.

WHAT’S INCLUDED

The front bumper is made from polypropylene and ships unpainted, so it needs to be painted by a body shop before installation. The front lip is gloss carbon fiber and comes with its finish already applied, so it doesn’t need paint.

FITMENT AND INSTALLATION

Fits Gen 1 and Gen 2 GR Yaris. The bumper installs with no cutting, drilling or other permanent changes to your car, so you can put the original bumper back on anytime. All hardware for both parts is included, and we recommend professional installation.

Material

Polypropylene
Wet Carbon Fiber

What's in the box

1 Front Bumper
1 Front Lip
Hardware

Select This Option

TOYOTA GR YARIS FRONT BUMPER

Front Bumper

TOYOTA GR YARIS FRONT BUMPER

THE FRONT END THE GR YARIS WAS MISSING.

From the side, the GR Yaris is all muscle: wide, flared fenders and sharp body lines that make it look ready to attack a corner. The factory front bumper doesn’t follow through. It’s tall, flat and boxy, so the front of the car looks narrower and calmer than the rest of it. This bumper fixes that.

DESIGN

The new bumper picks up the lines that run along the side of the car and carries them all the way across the front, so the nose finally matches the side of the car. The result looks wider and more aggressive while staying true to Toyota’s original body lines, giving the car the character the factory front end held back. The entire front is also extended 10mm forward for a lower, more planted stance.

HOW IT’S MADE

We start by 3D scanning the complete car, including everything behind the bumper: the crash beam, sensors and air intakes. Designing around that scan makes sure the new bumper clears every one of those parts. The shape is then sculpted by hand in clay at full size, scanned again, and finished with Class A surfacing, the same process carmakers use to create the smooth, continuous surfaces of factory body panels.

FITMENT AND INSTALLATION

Fits Gen 1 and Gen 2 GR Yaris. Installation requires no cutting, drilling or other permanent changes to your car, so you can put the original bumper back on anytime. The bumper is made from polypropylene and ships unpainted, so it needs to be painted by a body shop before installation. All hardware is included, and we recommend professional installation.

Material

Polypropylene

What's in the box

1 Front Bumper
Hardware

Select This Option

TOYOTA GR YARIS FRONT LIP (ADRO BUMPER)

Front Lip

TOYOTA GR YARIS FRONT LIP (ADRO BUMPER)

A LOWER, SHARPER FINISH FOR THE NEW FRONT END.

Our GR Yaris front bumper gives the nose the width and aggression the factory front end held back. The front lip takes it a step further. It runs along the bottom edge of the bumper and pulls the look of the car down toward the road, so the front sits lower and looks more planted than the bumper does on its own.

DESIGN

The lip is shaped specifically for our front bumper and follows its lower edge from one side to the other, so it looks like part of the same design rather than an add-on. It brings the front of the car visually closer to the ground without changing the bumper’s lines. It’s finished in gloss carbon fiber.

THE BUMPER IT’S MADE FOR

From the side, the GR Yaris is all muscle, with wide, flared fenders and sharp body lines. The factory front bumper is tall, flat and boxy, so the nose looks narrower and calmer than the rest of the car. Our bumper carries the side body lines across the front and extends the nose 10mm forward for a lower stance. It was developed from a 3D scan of the complete car and sculpted by hand in clay at full size.

FITMENT AND INSTALLATION

Fits Gen 1 and Gen 2 GR Yaris equipped with our GR Yaris front bumper. It does not fit the factory front bumper. The lip comes with its gloss finish already applied, so it doesn’t need to be painted. All hardware is included, and we recommend professional installation.

Material

Wet Carbon Fiber

What's in the box

1 Front Lip
Hardware

Select This Option

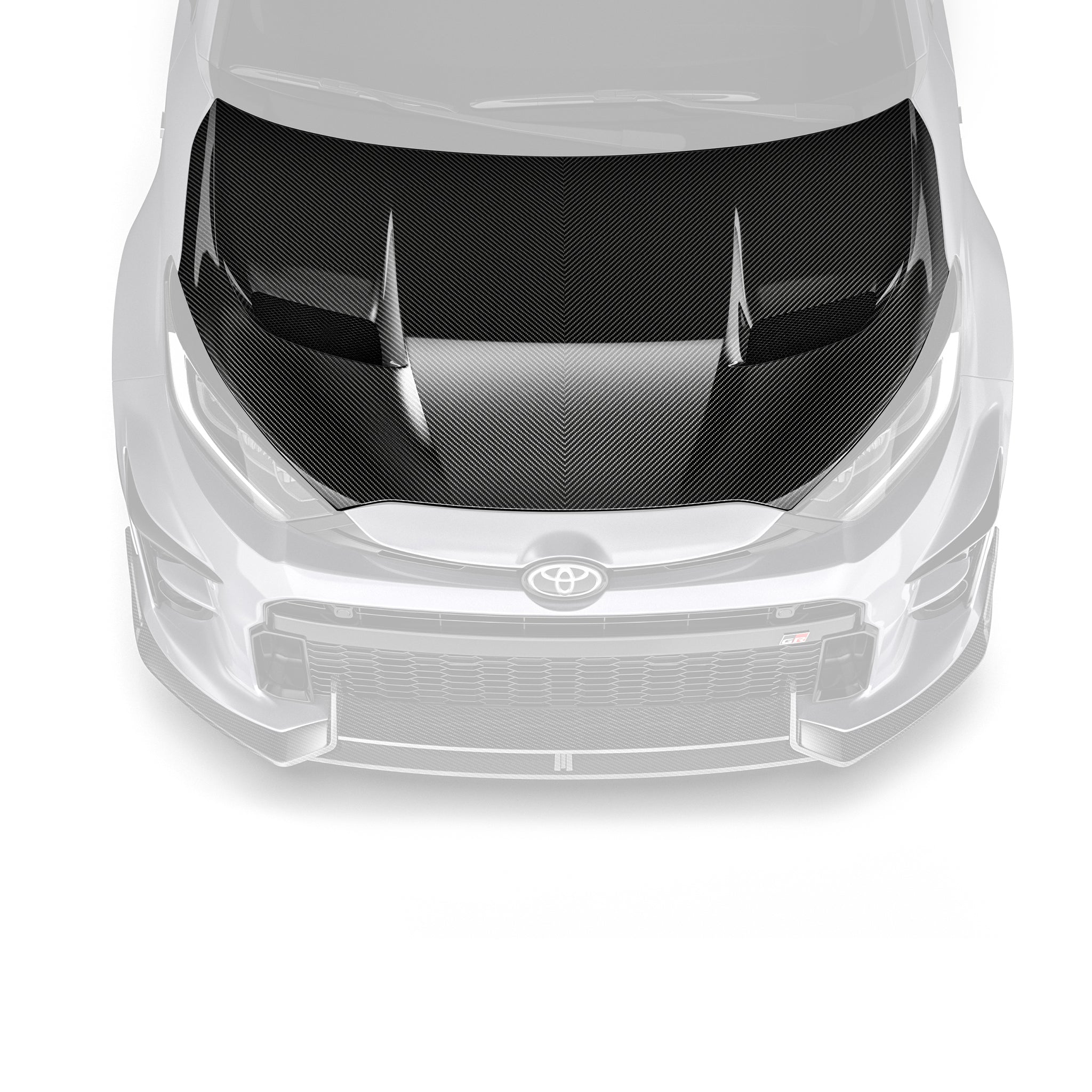

TOYOTA GR YARIS (GEN 1 & 2) PREPREG CARBON FIBER HOOD

Hood

TOYOTA GR YARIS (GEN 1 & 2) PREPREG CARBON FIBER HOOD

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



The GR Yaris prepreg carbon fiber hood saves weight where it counts while actively managing engine bay thermals. Its design increases airflow through the hood, helping trapped heat escape, a meaningful upgrade for both track days and spirited street driving.



Why Prepreg? No compromises.

Prepreg carbon fiber, also known as dry carbon, represents the pinnacle of carbon fiber construction, the same technology trusted in motorsport and aerospace applications. Resin is pre-impregnated into the weave at precise ratios and cured under controlled heat and pressure, producing a part that is lighter, stronger, and more dimensionally consistent with an exceptionally refined surface finish. The reduced resin content also translates to a meaningful weight reduction over conventional carbon fiber, a difference you can feel the moment you pick one up.

Material

Prepreg Carbon Fiber

What's in the box

1 Hood

Select This Option

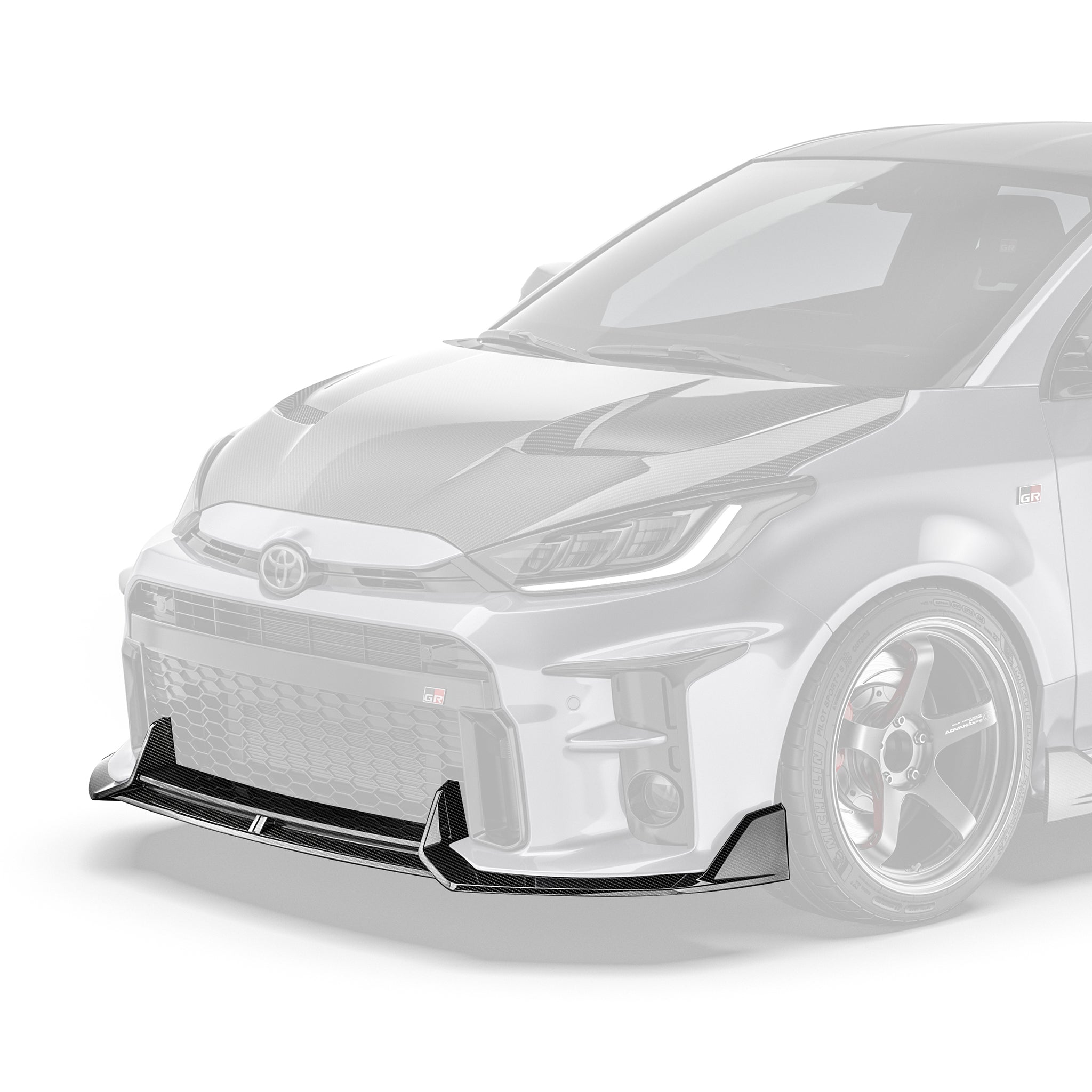

TOYOTA GR YARIS (GEN 1) CARBON FIBER FRONT LIP

Front Lip

TOYOTA GR YARIS (GEN 1) CARBON FIBER FRONT LIP

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



Handcrafted from carbon fiber and shaped to follow the car's exact factory lines. Every contour is purposeful, channeling airflow where it matters most while adding an aggressive stance that stays true to the GR Yaris's character.

Material

Wet Carbon Fiber

What's in the box

1 Front Lip
3M Tape
Screws

Select This Option

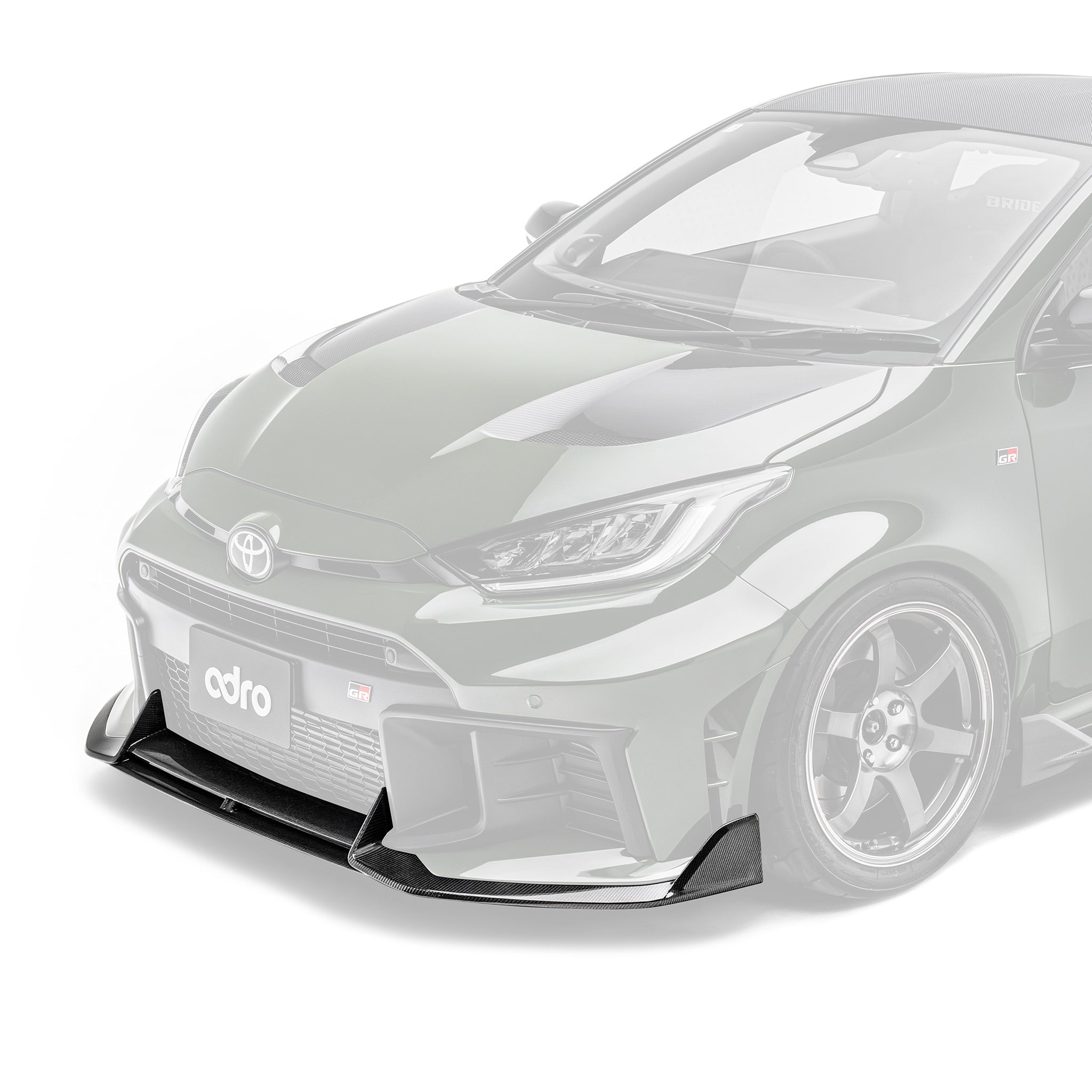

TOYOTA GR YARIS (GEN 2) CARBON FIBER FRONT LIP

Front Lip

TOYOTA GR YARIS (GEN 2) CARBON FIBER FRONT LIP

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



Handcrafted from carbon fiber and shaped to follow the car's exact factory lines. Every contour is purposeful, channeling airflow where it matters most while adding an aggressive stance that stays true to the GR Yaris's character.

Material

Wet Carbon Fiber

What's in the box

1 Front Lip
3M Tape
Screws

Select This Option

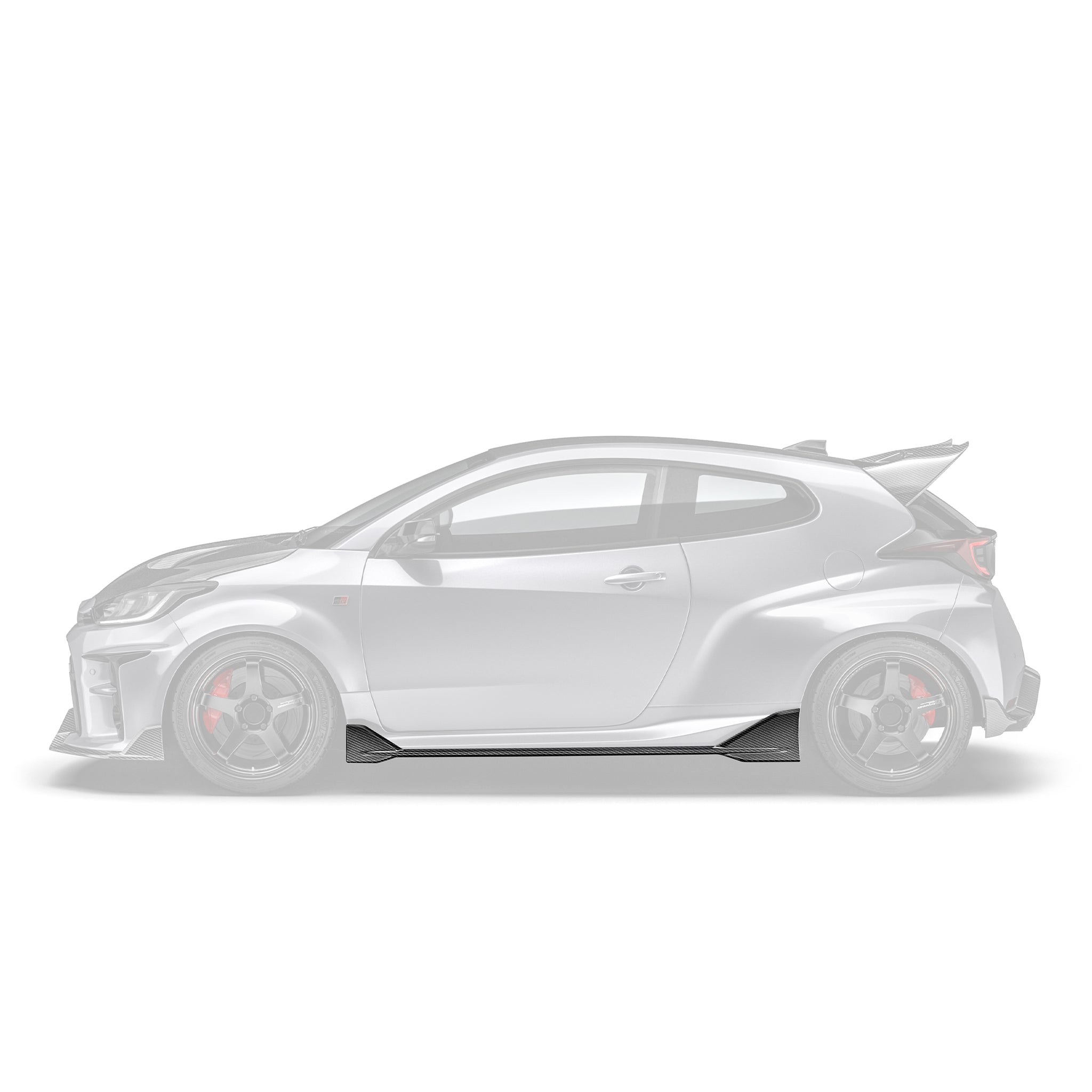

TOYOTA GR YARIS (GEN 1 & 2) CARBON FIBER SIDE SKIRTS

Side Skirts

TOYOTA GR YARIS (GEN 1 & 2) CARBON FIBER SIDE SKIRTS

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



Seamlessly bridging the front and rear, the GR Yaris carbon fiber side skirts manage airflow along the car's flanks to reduce turbulence and keep the aero package working as a cohesive system.

Material

Wet Carbon Fiber

What's in the box

1 Pair of Side Skirts (LH+RH)
3M Tape
Screws

Select This Option

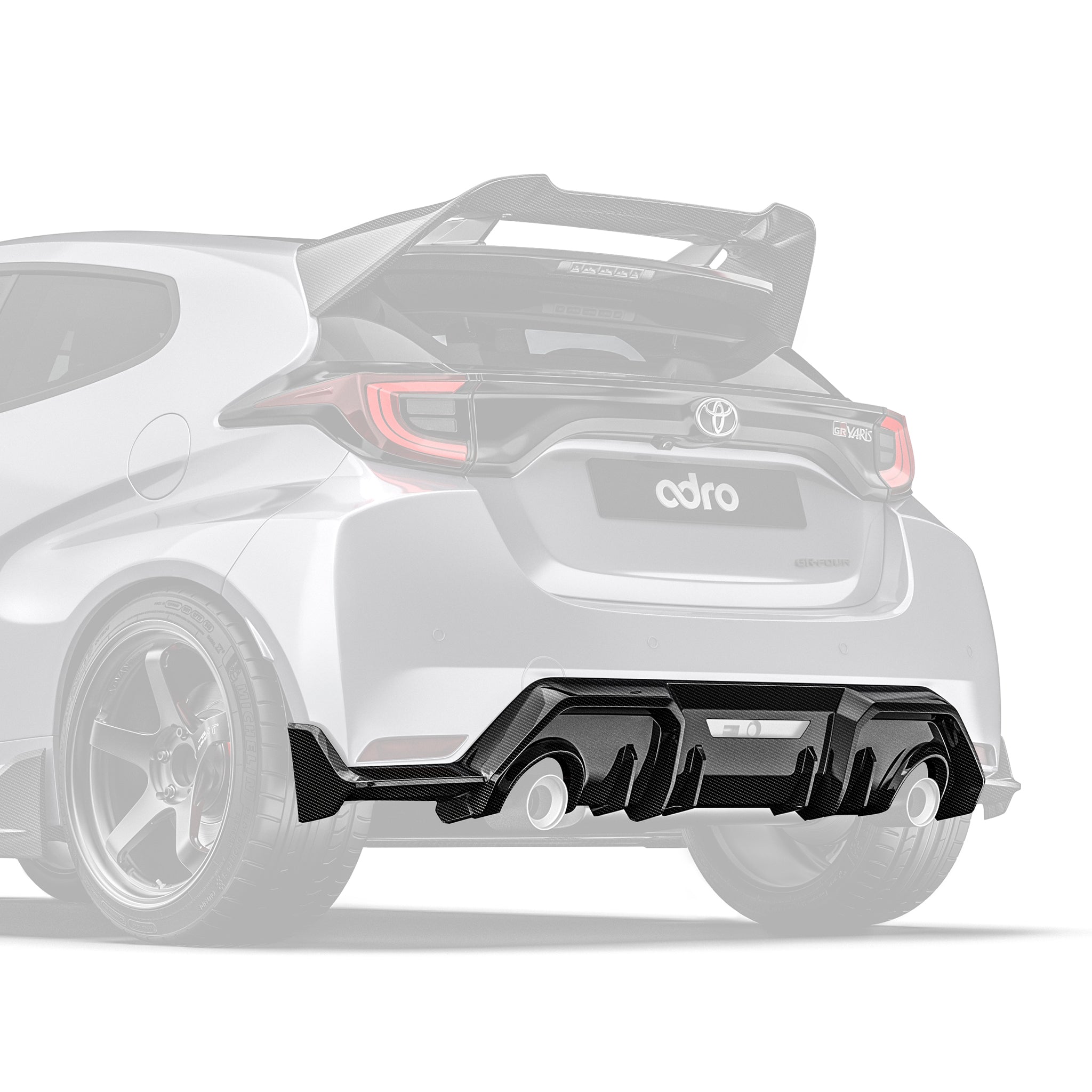

TOYOTA GR YARIS (GEN 1) CARBON FIBER REAR DIFFUSER

Rear Diffuser

TOYOTA GR YARIS (GEN 1) CARBON FIBER REAR DIFFUSER

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



The rear diffuser is where downforce gets put to work. By accelerating air exiting from under the car, it generates low pressure that pulls the rear of the vehicle toward the road, improving high-speed stability and cornering confidence.

Material

Wet Carbon Fiber

What's in the box

1 Rear Diffuser
3M Tape
Screws

Select This Option

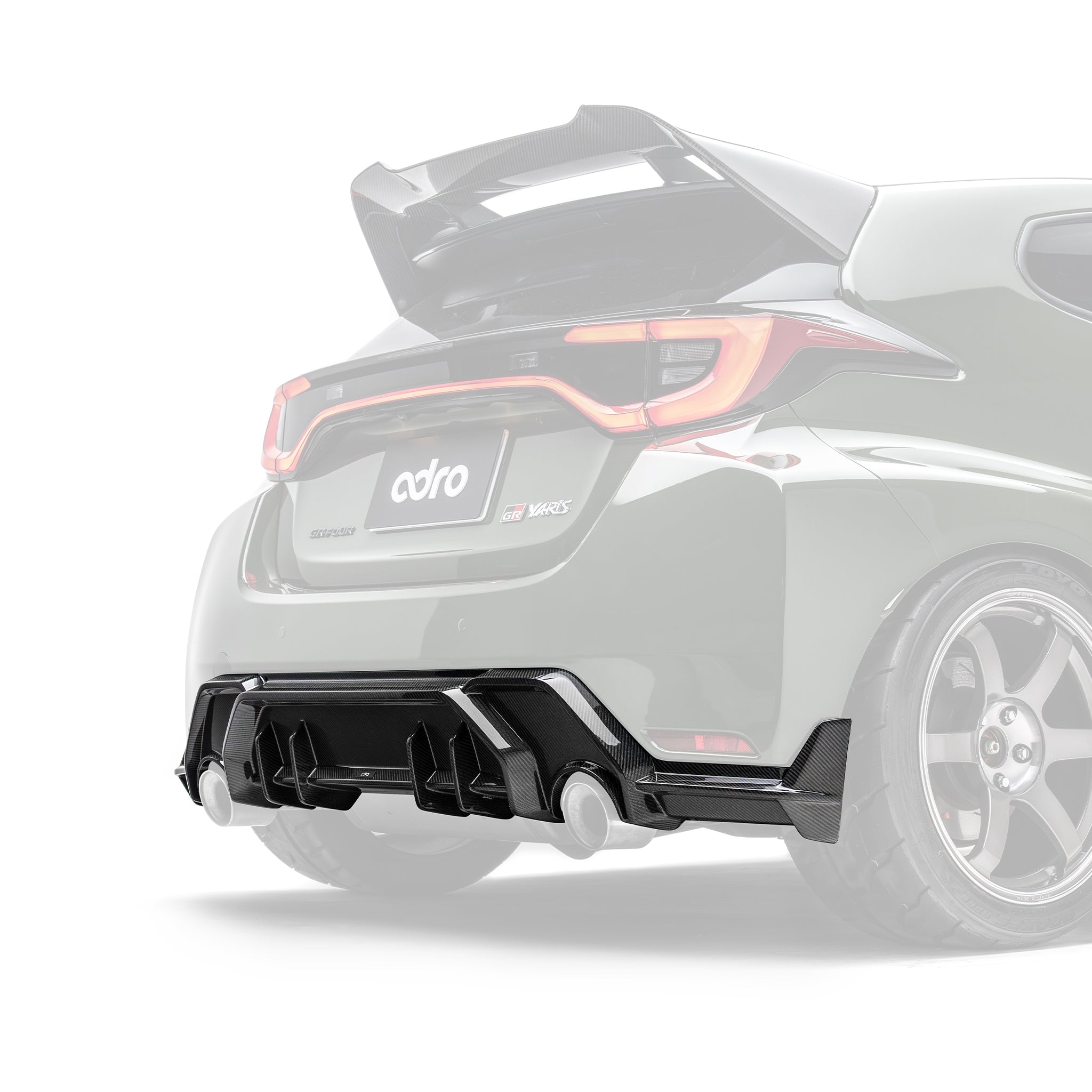

TOYOTA GR YARIS (GEN 2) CARBON FIBER REAR DIFFUSER

Rear Diffuser

TOYOTA GR YARIS (GEN 2) CARBON FIBER REAR DIFFUSER

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



The rear diffuser is where downforce gets put to work. By accelerating air exiting from under the car, it generates low pressure that pulls the rear of the vehicle toward the road, improving high-speed stability and cornering confidence.

Material

Wet Carbon Fiber

What's in the box

1 Rear Diffuser
3M Tape
Screws

Select This Option

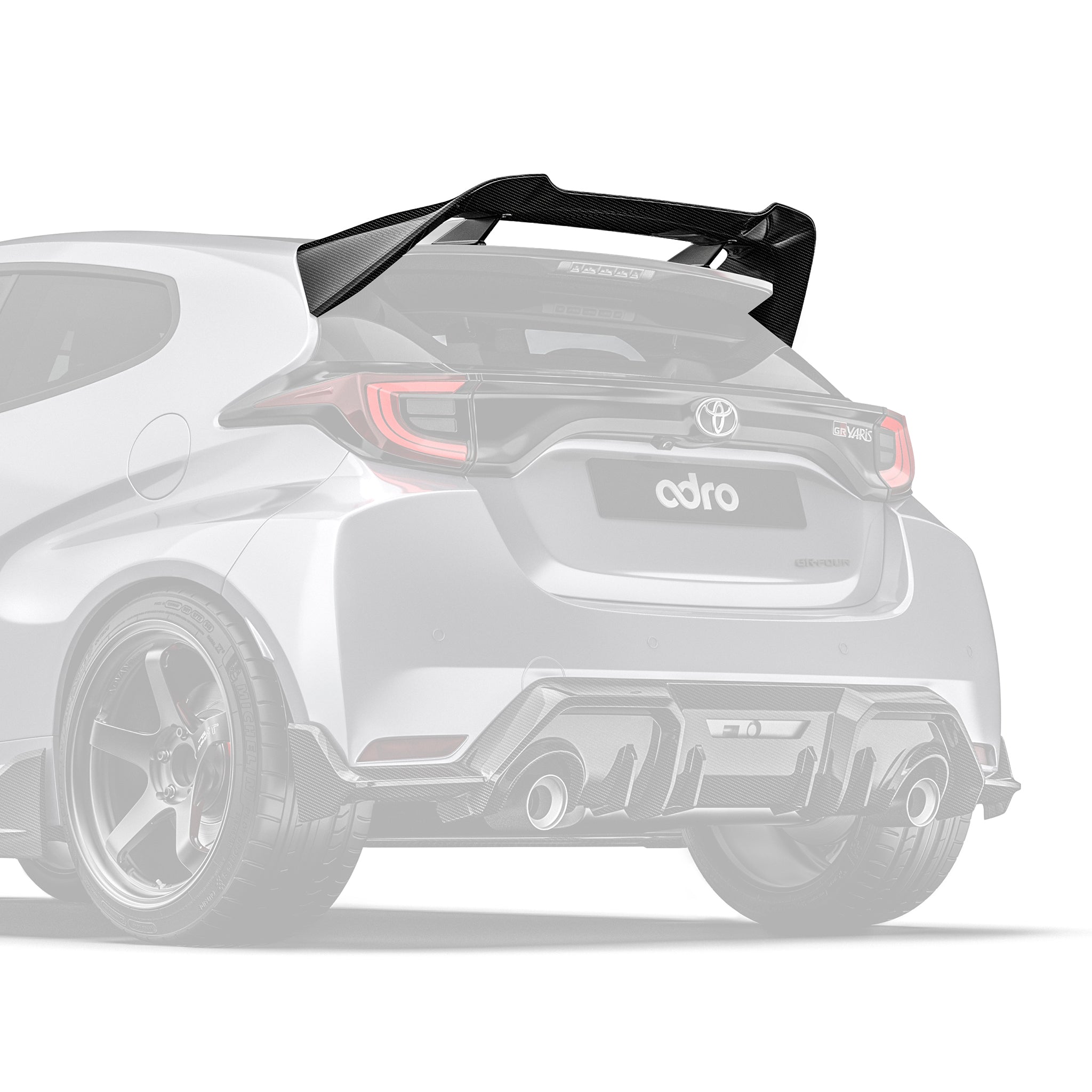

TOYOTA GR YARIS (GEN 1 & 2) PREPREG CARBON FIBER SPOILER

Spoiler

TOYOTA GR YARIS (GEN 1 & 2) PREPREG CARBON FIBER SPOILER

Toyota GAZOO Racing didn't build the GR Yaris to be ordinary, and neither did we.



ADRO sharpened what Toyota GAZOO Racing started. Backed by CFD testing, the full carbon fiber body kit was engineered to work with the GR Yaris's aerodynamic platform — delivering approximately 165 lbs (+734N) of additional downforce with minimal drag penalty. Unmistakably GR Yaris. Unmistakably ADRO.



A properly engineered rear spoiler does more than turn heads. ADRO's GR Yaris prepreg carbon fiber rear spoiler generates rear downforce and balances the aerodynamic load across the full kit, keeping the GR Yaris planted front to back.



Why Prepreg? No compromises.

Prepreg carbon fiber, also known as dry carbon, represents the pinnacle of carbon fiber construction, the same technology trusted in motorsport and aerospace applications. Resin is pre-impregnated into the weave at precise ratios and cured under controlled heat and pressure, producing a part that is lighter, stronger, and more dimensionally consistent with an exceptionally refined surface finish. The reduced resin content also translates to a meaningful weight reduction over conventional carbon fiber, a difference you can feel the moment you pick one up.

Material

Prepreg Carbon Fiber

What's in the box

1 Spoiler
Uprights
Hardware
3M Tape

Select This Option

CSF TOYOTA GR COROLLA & GR YARIS HIGH-PERFORMANCE ALL-ALUMINUM RADIATOR

Radiator / Heat Exchanger

CSF TOYOTA GR COROLLA & GR YARIS HIGH-PERFORMANCE ALL-ALUMINUM RADIATOR

Design & Engineering

CSF is well known for making the best Toyota cooling systems in the world. With years of feedback from Customers, Race Teams, and Development Partners, CSF has more experience with Toyota cooling systems than any other company in the world.

With more and more people pushing the limits of the GR Corolla / GR Yaris, the factory radiator has started showing its limitations. Bigger turbos cranking out more power create a lot more heat that needs to be dissipated. Furthermore, the intercooler is mounted directly in front of the radiator, so all the heat shed by that system runs through it. In racing applications this can be detrimental to engine coolant temperatures and risk sending your GR Corolla / GR Yaris into limp mode.

CSF vs OEM

The original OE radiator from Toyota is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable, there is always room for improvement. The 5mm fins on the OE radiator made the system fairly efficient for a factory unit. The core itself is one of the biggest limiting factors at only 27mm thick and a single cooling row.

With data collected by development partners and race teams, CSF was able to design the ideal High-Performance replacement. The CSF radiator features the latest 5mm fin technology. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The right side tank includes a pre-plugged 1/8th NPT temperature sensor port for those looking for more accurate coolant temperature readings. Pre-installed foam strips on top and bottom end plates improve sealing for better airflow over the radiator. The CSF radiator mounts in the factory location and requires no modifications or cutting.

Intercooler Clearance

The CSF x Jackson Racing Intercooler and some other aftermarket intercoolers utilize piping/hoses that are larger in diameter than the factory units. These larger intercooler pipes may have clearance issues with other aftermarket radiators. CSF carefully designed the end tanks on the #7233 with additional clearance for the CSF x Jackson Racing Intercooler while maintaining optimal volume and flow.

GR Corolla & GR Yaris Cross Compatibility

The engineering team at CSF spent extra time developing a radiator that could fit both the GR Corolla and GR Yaris. The factory radiator are very similar, but not interchangeable. This cross compatibility is a huge advantage for Dealers and Distributors as they only have to stock one part for both applications.

Features

  • 2-Row, 42mm Ultra-High-Performance Core
  • Cooling Tubes with CSF's Exclusive B-Tube Technology
  • New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
  • Pre-plugged 1/8th NPT temperature sensor port on right side tank
  • Pre-installed foam strips on top and bottom end plates for increased sealing
  • Recessed the lower
  • End tanks deigned with additional clearance for the CSF x Jackson Racing Intercooler or other aftermarket intercoolers with larger inlet and outlet pipes
  • 100% All Aluminum TIG-Welded Construction
  • Hand Brushed Satin Finish
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • 2-Year Limited Warranty

Select This Option

CSF TOYOTA GR COROLLA & GR YARIS STEPPED-CORE INTERCOOLER

Radiator / Heat Exchanger

CSF TOYOTA GR COROLLA & GR YARIS STEPPED-CORE INTERCOOLER

Design & Engineering

CSF and Jackson Racing have long and successful track records with Toyota Performance Products. While the OE Intercooler for the GR Corolla is actually quite efficient and a good design, there is always room for improvement. Using advanced 3D Scanning along with advanced CAD and CFD software, the engineering teams were able to maximize the size of the intercooler while maintaining optimal flow and greatly increasing efficiency.

Stepped Core

The stepped core design increases the overall volume of the intercooler core by 45% and the surface area by 73%. The step core allows for maximum surface area and volume but utilizing all the available space without requiring the bumper or any core supports to be modified or cut. The tanks were carefully engineered to optimize flow through the lower and upper cores resulting in incredible smooth and even flow with maximum heat transfer.

Hoses, Clamps, & Inlet/Outlet

Each Intercooler kit includes motorsport grade hoses and clamps designed specifically to hold up to high boost. High grade 5-ply silicone construction makes the hoses incredibly strong and have a matte black finish for a more stealthy performance look. The clamps are a unique new design that incorporates a bead lock system to help hold up to extremely high boost.

These hoses step up from the factory 1.85in (47mm) diameter to a larger 2.5in (63.5mm) diameter to match the Intercoolers large inlet and outlet. They connect to the factory charge pipes but can be replaced down the line if you want to upgrade your turbo, charge pipes, etc.

Silver and Black Finishes

CSF has become very well known for offering multiple finishes because everyone has different tastes. The intercooler is available in a Black (#8285B) finish for those looking for a more stealthy look behind the grill. The Silver (#8285) finish has a more OEM look, but is also more visible through the front grille.

CSF vs OEM – GR Corolla Intercooler

The performance of the OE Tube & Fin Intercooler is actually quite impressive. It is able to drop charge air temps by almost 150°F which is quite good for even some aftermarket performance intercoolers. The main drawback of the factory unit is how quickly it heat soaks. Post cooler charge air temps can quickly climb by 60°F. The limited surface area really hampers the overall cooling capacity here.

The CSF x Jackson Racing Intercooler features a High-Performance Tube & Fin core. This type of core was selected both for the cooling efficiency, but also for the lighter weight characteristics when compared to Bar & Plate construction. A lighter weight intercooler helps keep excess weight off the front end, keeping the agile handling characteristics of the GR Corolla. The stepped core design gives the CSF x Jackson Racing unit a 45% larger core volume and 73% more surface area than the OE cooler.

The TIG-Welded Cast Aluminum end tanks increase the overall strength of the intercooler. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF x Jackson Racing Intercooler mounts in the factory location and requires no modifications to the bumper or crash bar. The OEM ducting does requiring trimming to be used. This ducting helps guide air into the upper stepped core.

Testing CSF vs OEM

Testing was performed at World Motorsports in Torrance, CA with the help of Moto IQ . The OEM intercooler was run first to establish a baseline. You can see the OEM intercooler reaches heat soak relatively quickly (about 3 pulls). Performance was fairly impressive for an OEM intercooler, able to drop the charge air temperatures approximately 150ºF.

The CSF x Jackson Racing Intercooler just blew the factory system out of the water though. Charge air temperatures were reduced by more than 240ºF. That's 90ºF more than the OEM intercooler. This resulted in much lower Intake Air Temperatures (IATs) and that were just a few degrees over ambient. On top of that, heat soak took twice as long to set in. Even when heat soaked, the charge air temperatures remained around 60ºF cooler than that of the factory intercooler.

Select This Option
